A COLLECTION OF VEHICLE HISTORY AND SPECIFICATIONS ABOUT TOYOTA'S FIFTY YEARS IN THE USA
| Toyota / Lexus / Scion Reference Page: Chassis, Engine & Paint Codes for USA models |
| Important: |
|

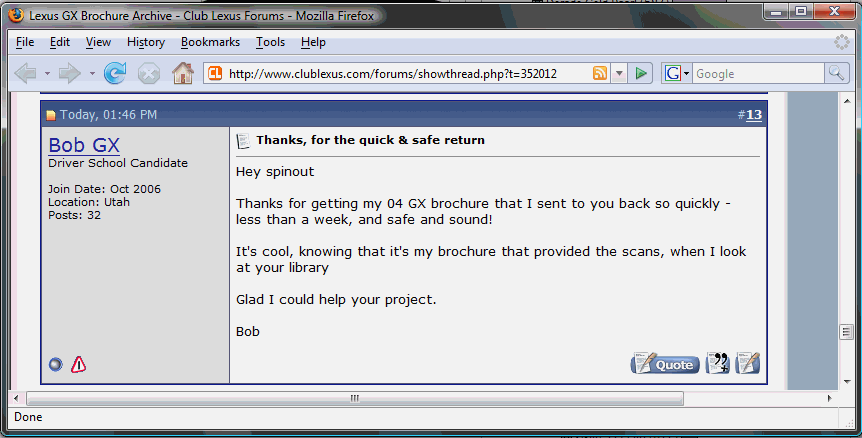

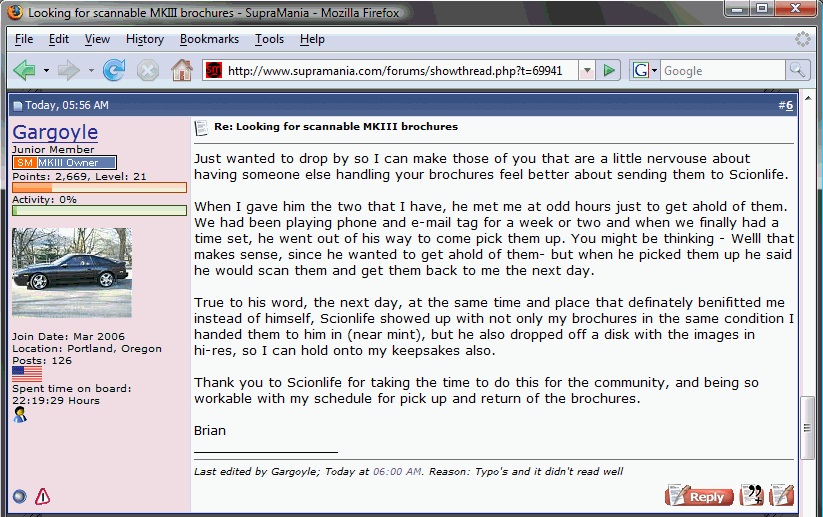

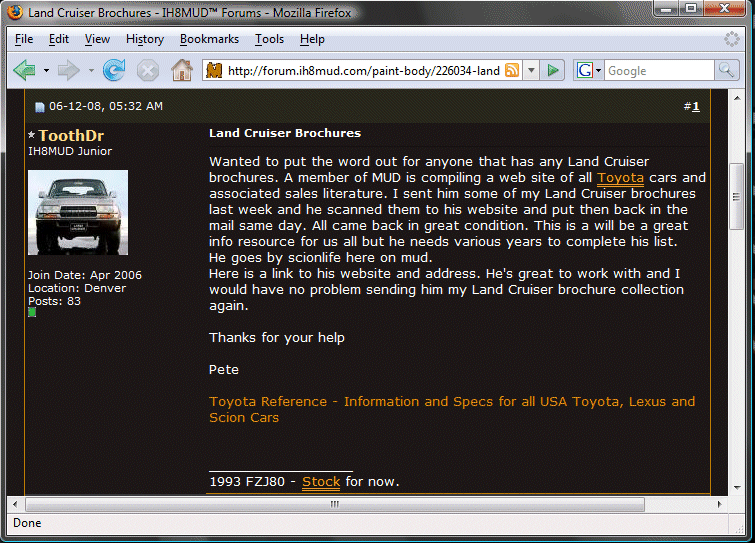

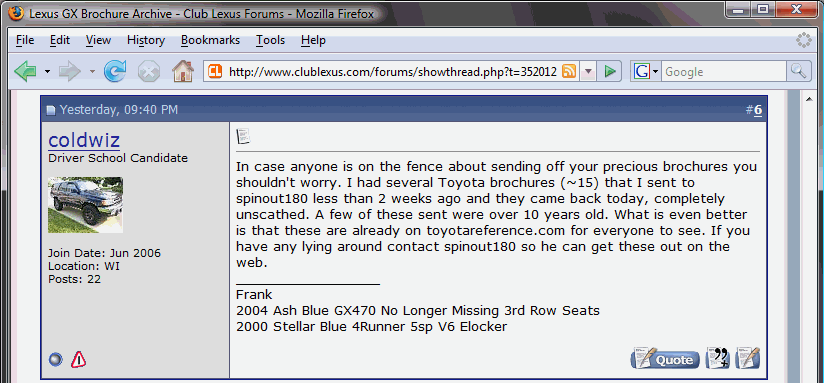

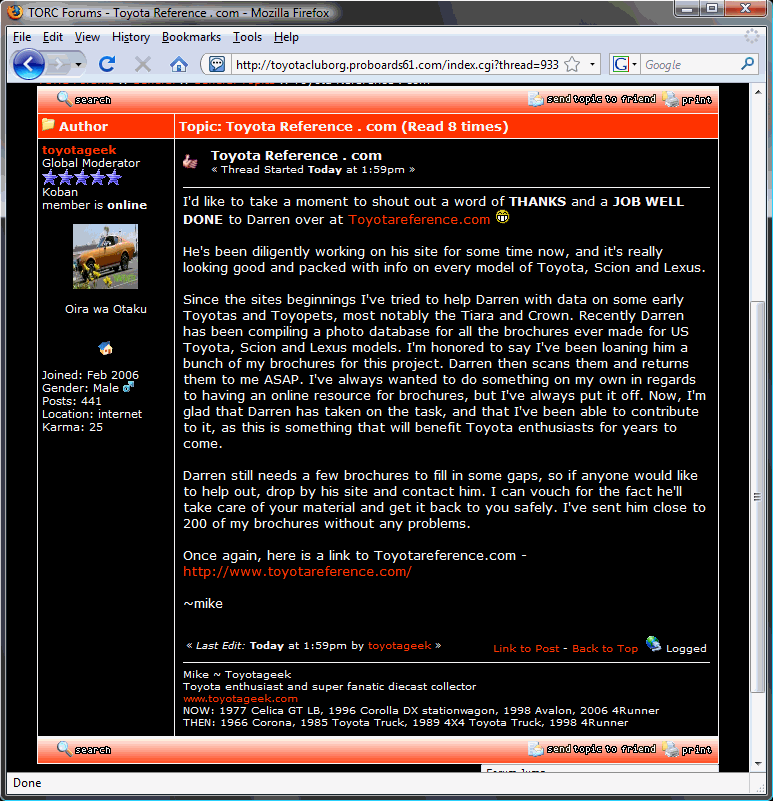

Important Links Stepho's Toyota Site ToyotaGeek's Site McLellan's Literature AutoColor Library PaintScratch.com AutomotiveTouchup Help! BROCHURES NEEDED! 2009- Toyota Venza chassis codes Illustrations To-Do Corona MKII 69-72 Coupe RT72 Notes taking the right photo testimonial 1 testimonial 2 testimonial 3 testimonial 4 Contact Info Darren Seeman 2541 N Terry St Portland OR 97217 darren_at_toyotareference_dot_com |
Introduction This site started as a collection of notes to help me remember important Scion information when I launched ScionLife.com in 2003. I've been a longtime Toyota fan, and have owned a long list of their products, which currently consists of a Tundra and an SC430. Over the years I added Toyota and Lexus information, along with color, chassis and engine codes. I've illustrated every single vehicle on this page, and most recently I have added a sales brochure archive so that we can all enjoy Toyota's rich history in the US. This site is my personal project and I have worked diligently to make it as accurate and complete as possible. I update it almost daily with new information and since it is in a constant state of evolution I can guarantee that there are errors here and there. Please use it at your own risk. Donations Until recently this site didn't take much to run. It is pretty much just a single page, right? Well, since I decided to add the brochure archive I've found that getting my hands on these brochures is a little tougher than I thought. At this point I've spent over $1000 to purchase brochures simply so they can be scanned. This has left me with many brochures stacked up that I simply don't want to store. So the solution is this: for each $20 donation that is received I will send you the brochure of your choice from my current inventory. The inventory list is below, along with the PayPal donation button. Thank you! |
 Lexus Full Lineups: |
| Toyota Full Lineups: |
 1969 |
 1970 |
 1971 |
 1972 |
1973 |
 1974 |
1975 |
 1976 |
 1977 |
 1978 |
 1979 |
1980 |
1981 |
1982 |
1983 |
1984 |
 1985 |
 1986 |
 1987 |
 1988 |
 1989 |
 1990 |
 1991 |
 1992 |
 1993 |
 1994 |
 1995 |
 1996 |
 1997 |
 1998 |
 1999 |
 2000 |
 2001 |
 2002 |
 2003 |
 2004 |
 2005 |
 2006 |
 2007 |
 2008 |
| Toyota 2000GT: |
 1967-1970 2000GT 2.0L 67-70 Chassis Code: MF10 Engine Code: 3M 2000GT 2.3L 69-70 Chassis Code: MF12 Engine Code: 2M Related Links TORC Forums |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Toyota 4Runner: |
 2003- (4th Gen) 4Runner 2WD 4.0L 03- Chassis Code: GRN210 Engine Code: 1GR-FE 4Runner 2WD 4.7L 03- Chassis Code: UZN210 Engine Code: 2UZ-FE 4Runner 4WD 4.0L 03- Chassis Code: GRN215 Engine Code: 1GR-FE 4Runner 4WD 4.7L 03- Chassis Code: UZN215 Engine Code: 2UZ-FE * 2008 Urban Runner available in Black, Titanium Metallic or exclusive Blizzard Pearl Internet Reference: paint codes on toyota-4runner.org brochures on toyota-4runner.org |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 1996-2002 (3rd Gen) 4Runner 2WD 2.7L 96-02 Chassis Code: RZN180 Engine Code: 3RZ-FE 4Runner 2WD 3.4L 96-02 Chassis Code: VZN180 Engine Code: 5VZ-FE 4Runner 4WD 2.7L 96-02 Chassis Code: RZN185 Engine Code: 3RZ-FE 4Runner 4WD 3.4L 96-02 Chassis Code: VZN185 Engine Code: 5VZ-FE Internet Reference: paint codes on toyota-4runner.org brochures on toyota-4runner.org |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 1990-1995 (2nd Gen) 4Runner 2DR 4WD 2.4L 90-90 Chassis Code: RN130 Engine Code: 22R-E 4Runner 2DR 4WD 3.0L 90-91 Chassis Code: VZN130 Engine Code: 3VZ-E 4Runner 4DR 2WD 2.4L 90-91 Chassis Code: RN120 Engine Code: 22R-E 4Runner 4DR 2WD 3.0L 90-95 Chassis Code: VZN120 Engine Code: 3VZ-E 4Runner 4DR 4WD 2.4L 90-95 Chassis Code: RN130 Engine Code: 22R-E 4Runner 4DR 4WD 3.0L 90-95 Chassis Code: VZN130 Engine Code: 3VZ-E Internet Reference: paint codes on toyota-4runner.org brochures on toyota-4runner.org |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 1984.5-1989 (1st Gen) 4Runner 4WD 2.4L 84.5-85 Chassis Code: RN60 Engine Code: 22R-E 4Runner 4WD 2.4L 86-89 Chassis Code: RN61 Engine Code: 22R-E 4Runner 4WD 2.4L Turbo 86-87 Chassis Code: RN61 Engine Code: 22R-TE 4Runner 4WD 3.0L 88-89 Chassis Code: VZN61 Engine Code: 3VZ-E Internet Reference: paint codes on toyota-4runner.org brochures on toyota-4runner.org |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Toyota Avalon: |
 2005- (3rd Gen) Avalon 3.5L 05- Chassis Code: GSX30 Engine Code: 2GR-FE |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 2000-2004 (2nd Gen) Avalon 3.0L 00-04 Chassis Code: MCX20 Engine Code: 1MZ-FE |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 1995-1999 (1st Gen) Avalon 3.0L 95-00 Chassis Code: MCX10 Engine Code: 1MZ-FE |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Toyota Camry: |
 2007- (6th Gen) Camry 2.4L 07- Chassis Code: ACV40 Engine Code: 2AZ-FE Camry 2.4L Hybrid 07- Chassis Code: AHV40 Engine Code: 2AZ-FXE Camry 3.5L 07- Chassis Code: GSV40 Engine Code: 2GR-FE * Blizzard Pearl only on 50th Anniversary Edition * Jasper Pearl only available on Camry Hybrid Internet Reference: camryforums.com |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 2002-2006 (5th Gen) Camry 2.4L 02-06 Chassis Code: ACV30 Engine Code: 2AZ-FE Camry LE/XLE 3.0L 02-06 Chassis Code: MCV30 Engine Code: 1MZ-FE Camry SE 3.3L 04-06 Chassis Code: MCV31 Engine Code: 3MZ-FE Internet Reference: camryforums.com |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
